Using MCP tools

MCP, the Model Context Protocol, connects AI applications to external tools. Register a remote server in your workspace, authorize its connection, and give its operations to an Agent block or run them through an MCP block.

Registrations are workspace-scoped. Add a separate registration in each workspace that needs the server. To connect an external app to Sim itself, use the Sim MCP server, workflow deployment MCP, or Search MCP.

Add a server

You need Write or Admin access. Sim supports remote Streamable HTTP servers; a local stdio command is not a supported registration.

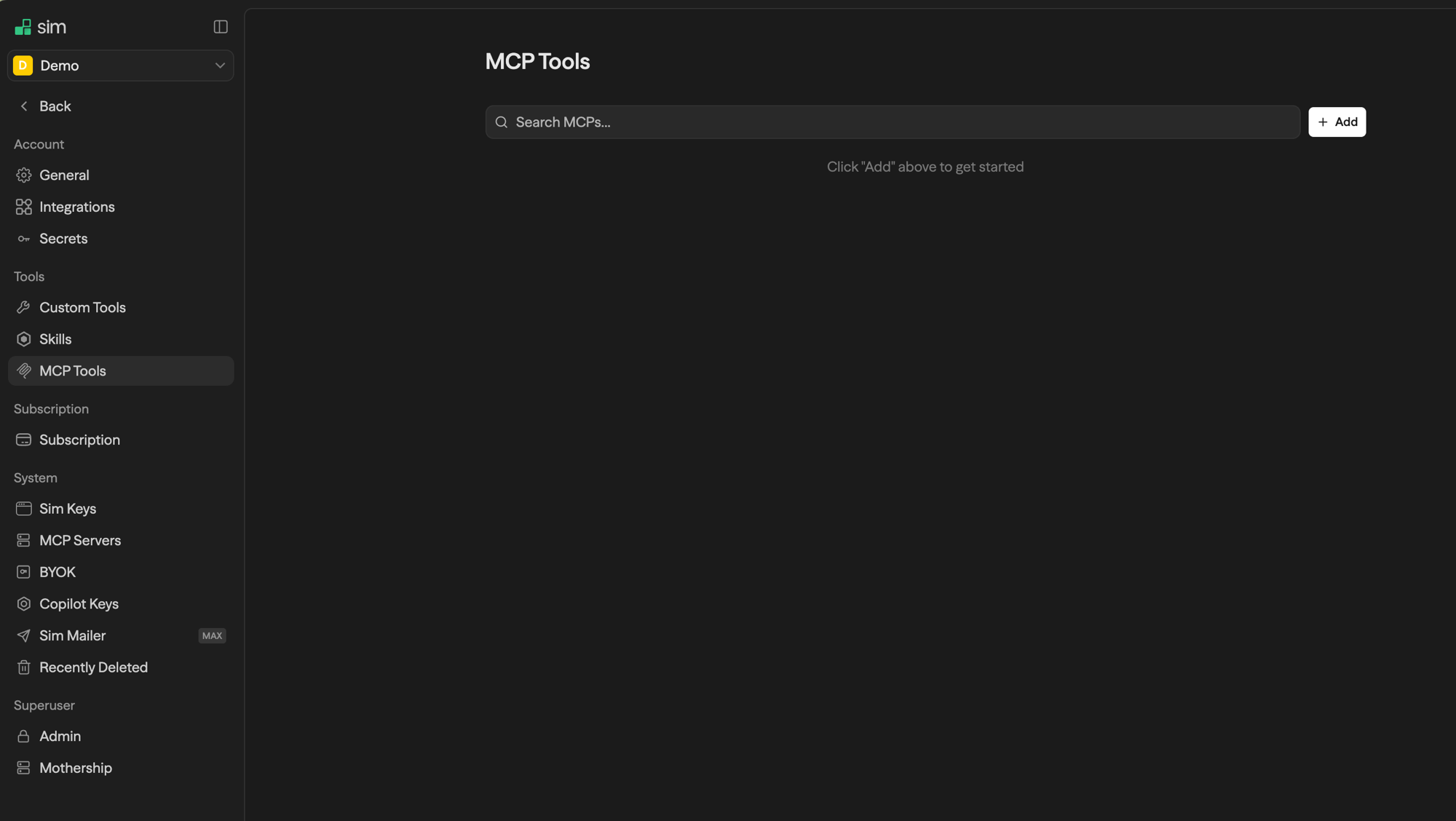

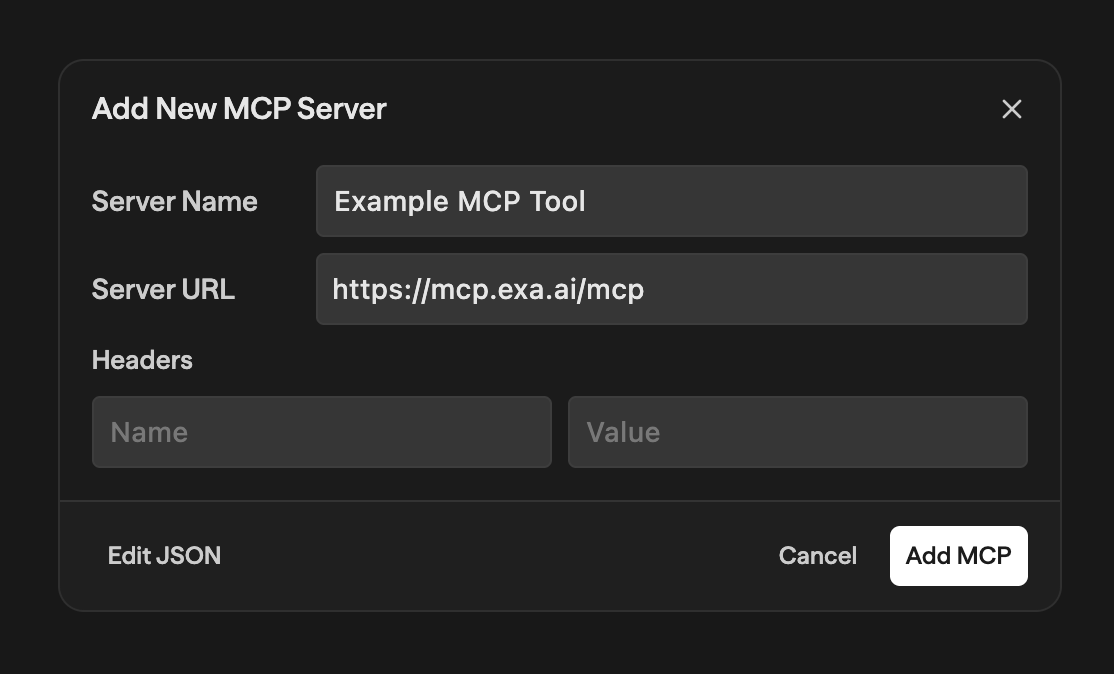

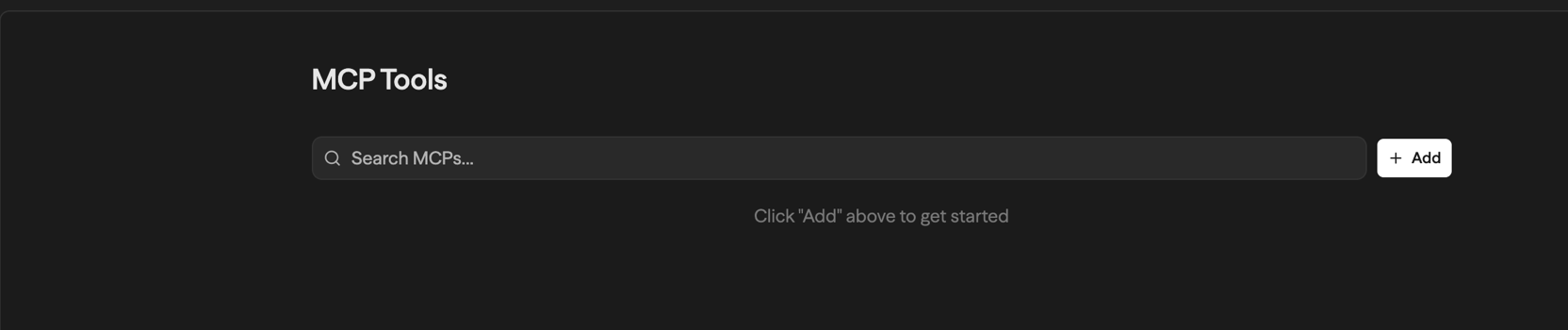

1. Open Settings → MCP tools and select Add server. You can also select Add MCP Server in an Agent's Tools menu.
2. Enter the Server Name and Server URL.
3. Add authentication Headers if the provider requires them. Use saved secret references for sensitive values.
4. If the provider requires an OAuth client that cannot be registered automatically, open Advanced settings and enter its Client ID and Client Secret.
5. Select Add server. Sim tests the connection before saving.
6. For OAuth authentication, select Authorize on the saved server and complete browser sign-in.

Open the server detail to inspect Tools, including parameter names, types, and required flags. A successful connection can expose no tools. When editing a registration, use Test connection to check connectivity.

The registration uses streamable-http and defaults to a 30,000 ms connection timeout. These are configuration values rather than selectable controls in the form. Each connection attempt is capped at 60,000 ms. OAuth requires HTTPS outside loopback development.

Edit JSON accepts a remote configuration with a named mcpServers entry containing url and optional headers, or a configuration containing url directly. If several entries are present, it reads the first. It does not import a desktop client's executable command configuration.

Secrets in URLs and headers

URLs and headers support {{VAR_NAME}} substitution from available saved secrets. Type {{ in either field to open the secret picker:

URL: https://api.example.com/mcp
Authorization: Bearer {{MCP_API_TOKEN}}

When a secret is successfully substituted, Sim masks exact recognized values in stored MCP tool-call traces unless the secret's visibility setting exempts them. The real credentials are used for the provider request. See Execution log protection for model projection, visibility exceptions, and encoded or transformed values.

Connection identity

Ordinary OAuth registrations use the acting user's OAuth connection. Unattended workflow runs use the run's trusted execution actor. Each member who needs an ordinary OAuth connection may need to authorize their own account.

A managed connection uses the explicitly selected Credential Group connection and its access grants. Servers managed by Connected accounts are configured there.

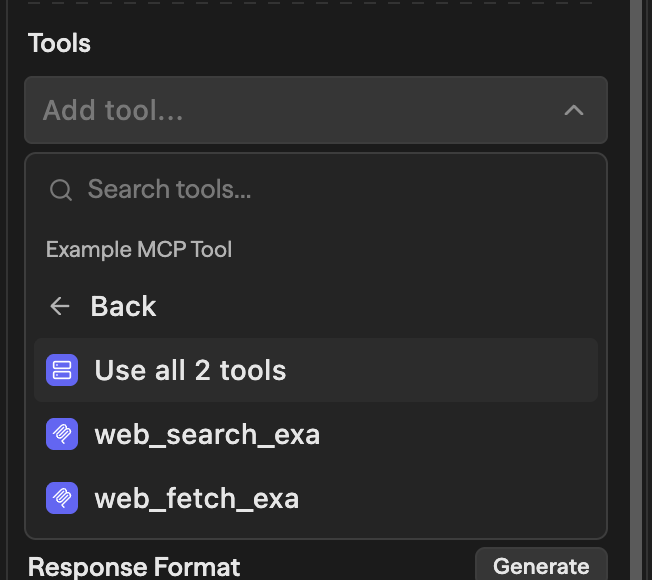

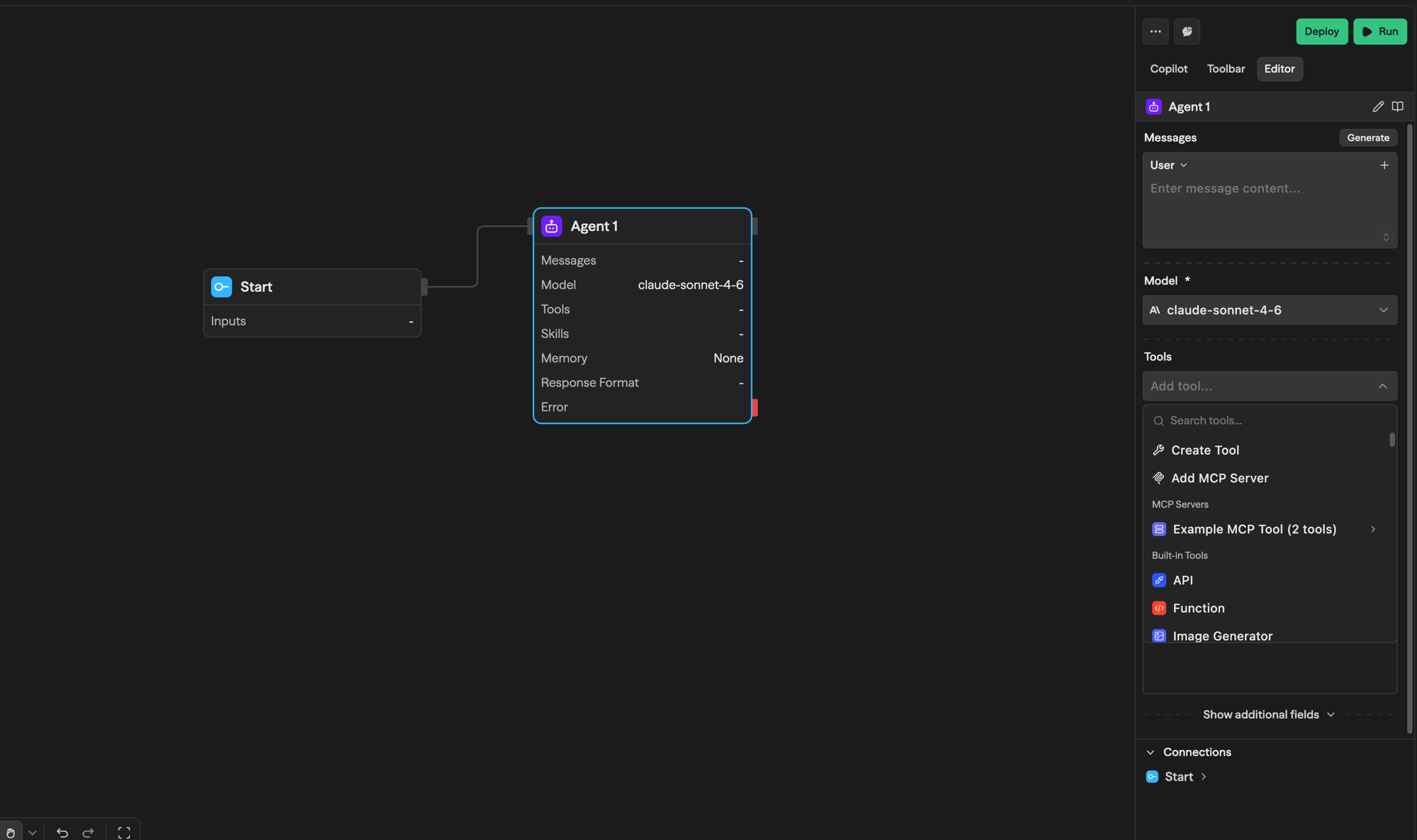

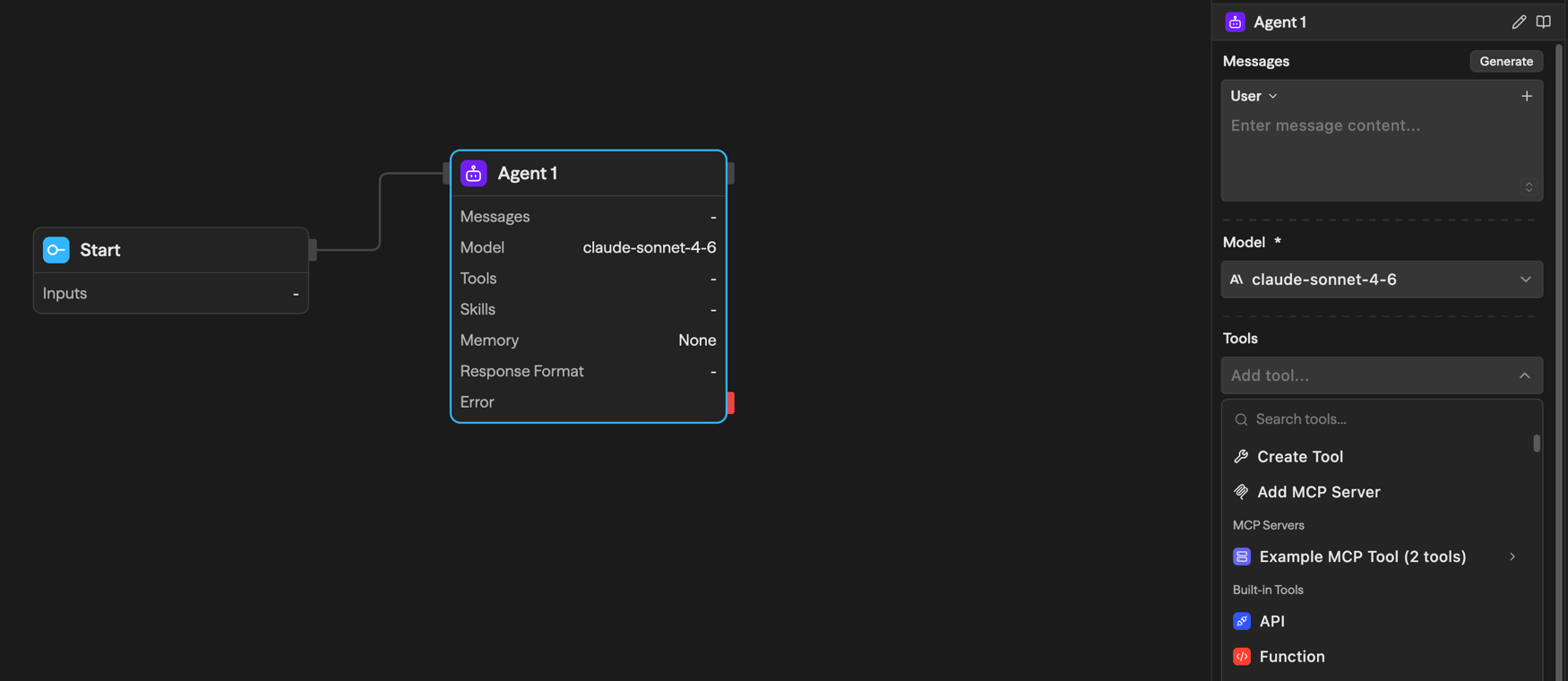

Add tools to an Agent

1. Open an Agent block with a model that supports tools.
2. Under Tools, select Add tool....
3. In MCP Servers, open the configured server.
4. Select individual tools, or select Configure operations access to attach the server with an access policy.

Individual tools expose their argument fields. The Agent chooses when to call the tools and supplies model-controlled inputs. Per-tool Permission Mode and current workspace, credential, and organization authorization still apply.

Dynamic server attachment

Select MCP Server (Advanced) to supply a server or managed-connection ID directly, or reference an upstream value. The Tool IDs field accepts literal exact operation names, such as search_docs, without a Sim server prefix. These fields use plain inputs rather than server or operation catalog pickers.

Operation names in Tool IDs are configuration, not model arguments or upstream references. The policy applies to whichever authorized connection the server reference resolves to at runtime.

Operations access

New restricted attachments start with an empty explicit selection. Existing saved configurations retain their prior access through normalization, subject to current authorization.

The policy is saved on the Agent attachment. Discovery filters the tools offered to the model, and execution checks the resolved server, connection, and policy again before calling the provider. Names are case-sensitive. The policy can narrow credential access; it cannot grant access the credential lacks.

Missing or forbidden operations, invalid connection scopes, unverifiable schemas, and malformed arguments fail the call. An Agent attachment with no permitted operations fails clearly. Operation restrictions match names; they do not inspect arguments.

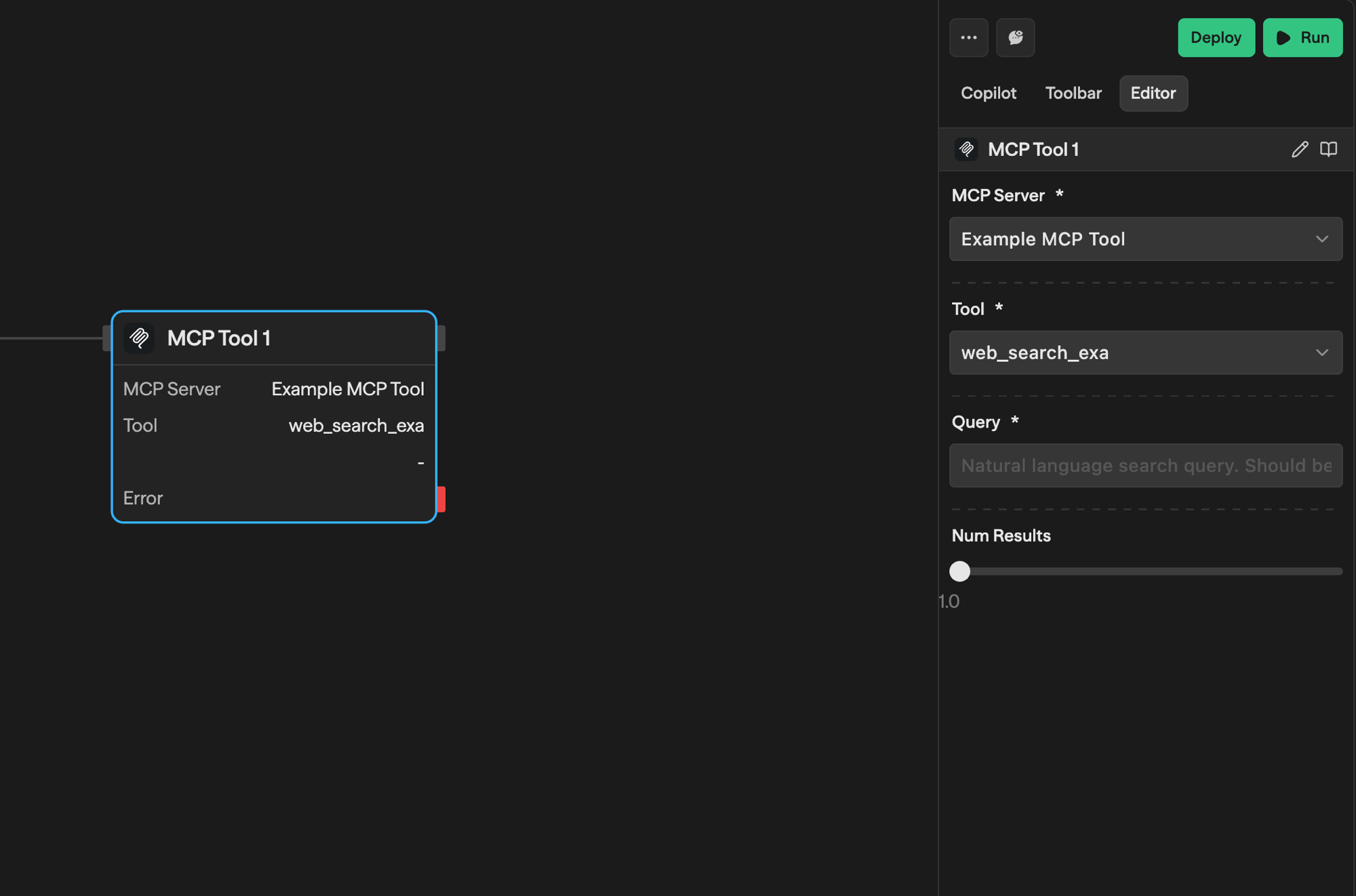

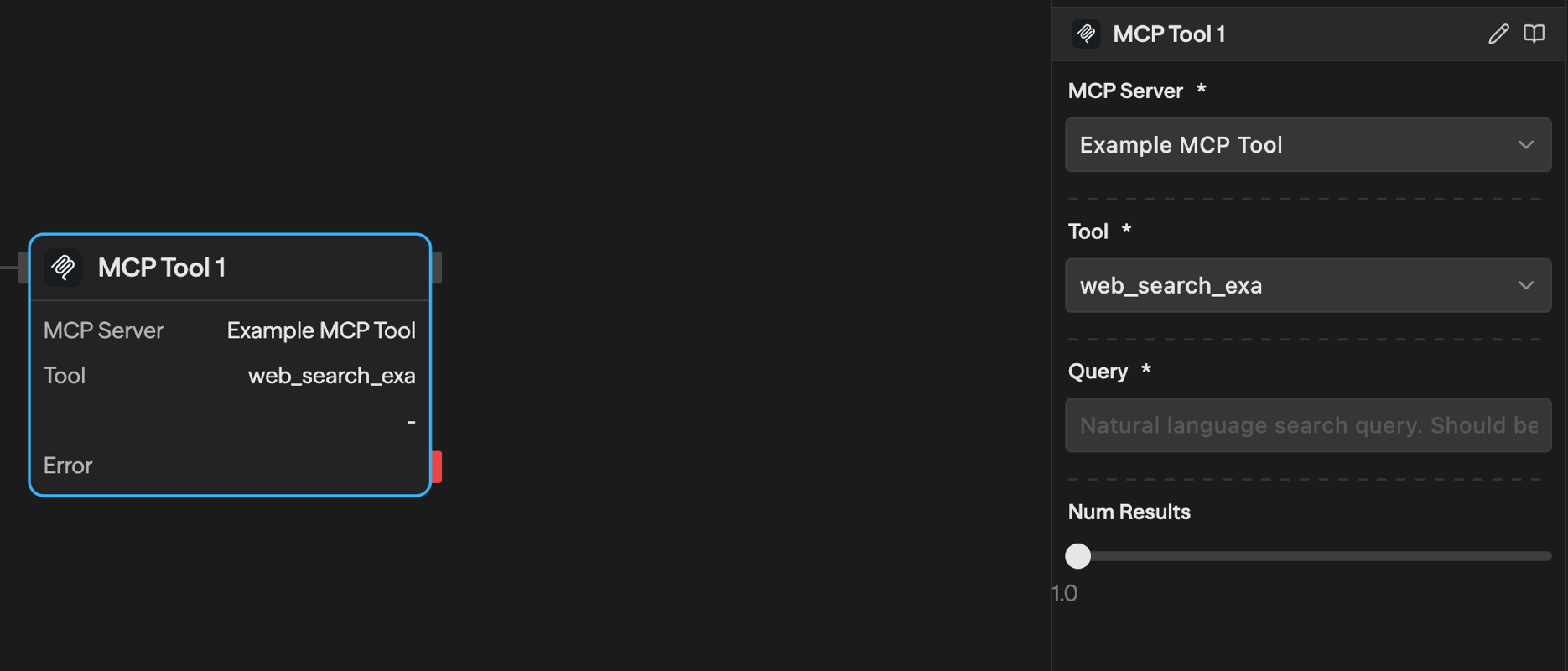

Run or list operations with an MCP block

Use an MCP block for explicit execution or authorized operation discovery. Select its Action:

• Run operation executes one exact operation name. Configured operations show generated argument fields. If the name resolves at runtime, supply a JSON arguments object; Sim validates it against the discovered schema before execution.
• List operations returns authorized operation names, descriptions, and input schemas without executing provider operations. Search operations filters names and descriptions. Page size accepts 1–100 and defaults to 100; it and Cursor are advanced fields.

In Basic mode, select a configured connection under MCP Server and a discovered Operation. In Advanced mode, enter literal IDs/names or references. A runtime server reference requires JSON arguments. Listing hides the operation and argument fields.

MCP Server accepts one shared-server ID or managed-connection ID. Sim resolves a managed connection's parent server and verifies workspace and credential access. Both actions use the same identifier. The standalone block runs its specified operation and has no separate Agent attachment policy.

Outputs and pagination

While hasMore is true, pass nextCursor into Cursor on the next list request. An authorized list can be empty. This pagination does not bypass the discovery limits below.

Refresh and troubleshoot

Use Refresh on the server detail to fetch current schemas. Matching individual MCP bindings in draft Agent blocks receive updated schemas and server metadata. Removed operations remain referenced and can fail; review validation badges to see affected workflows. Deploy an updated draft when the deployed version needs those changes. Dynamic attachments discover authorized tools when they run.

Discovery normally uses a five-minute cache. Failed server probes can be cached for two minutes; Refresh forces a retry. A cached or partially discovered inventory does not prove the provider has no other operations.

Discovery limits

Client discovery follows the provider's tools/list pages within these bounds:

Repeated provider cursors also stop discovery. Settings discovery may return a partial inventory after a bound or later-page failure. Runtime discovery requires completion and fails if the inventory is truncated. The standalone block's page size applies after this discovery and authorization.

If a call fails, check the server's connectivity, authorization, current schema, and saved access policy. An Agent can receive the tool error and respond or try another action; a standalone block uses the workflow's configured error handling. Verify the provider's state before repeating an operation that may have side effects.

Permissions

Adding or changing a workflow's tools also requires workflow edit access. Credential grants and organization permission-group restrictions apply separately. On Enterprise-entitled workspaces, a workspace Admin can configure disableMcpTools through permission groups.

These permissions govern external server registrations. Workflow MCP deployment has its own management and invocation requirements.

Self-hosted network policy

Set ALLOWED_MCP_DOMAINS to a comma-separated list of exact approved hostnames to restrict server domains. When unset, there is no domain allowlist restriction.

Domain approval and network reachability are separate checks. Private-address servers also need EGRESS_ALLOWED_HOSTS or EGRESS_ALLOWED_IP_RANGES; see the SSRF boundary.

The domain allowlist applies to the configured server URL. For OAuth, an endpoint on that server's origin retains its reachability. An endpoint named by metadata on a different origin is treated as fetched content and must be publicly routable under the egress policy.
